TrailMaster Blazer 200 Electric Start Start 4-Stroke, Single Cylinder, Air Cooled Go Kart
My Golf Carts offers unbeatable prices on this TrailMaster Blazer 200 Electric Start Start 4-Stroke, Single Cylinder, Air Cooled Go Kart. We ship nation wide fully assembled and tested.
Driving is effortless and fun with rack-and-pinion steering, convenient reverse shifting, easily reachable, dash-mounted controls and dual sport bucket seats with 5 point harnesses. The gas pedal to seat back is adjustable from 34” to 39”, fitting a driver up to 5’8” in height. Front seat to rear seat distance is 28”, fitting a passenger up to 6’2” in height.
At My Golf Carts, we specialize in everything Golf Carts. We offer great deals on Gas Powered Golf Carts and Electric Golf Carts. We're a licensed dealer with years of experience and thousands of sales under our belts. If you have questions or would like to know more about this TrailMaster Blazer 200 Electric Start Start 4-Stroke, Single Cylinder, Air Cooled Go Kart, give us a call at 682-219-0049 or Email us sales@MyGolfCarts.com and we'll be happy to help.

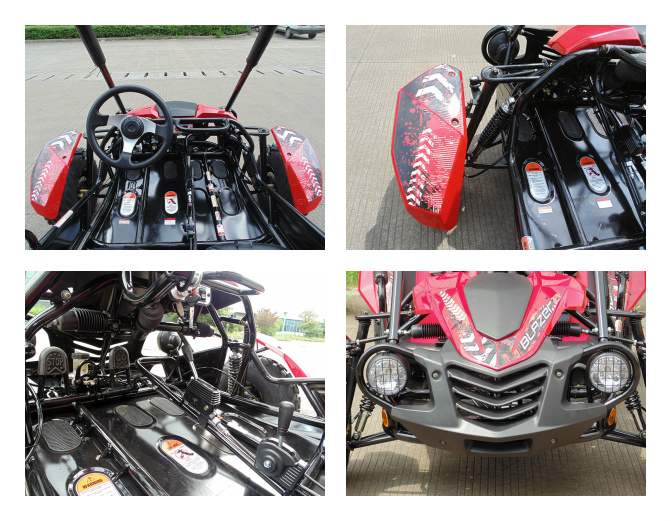

Detail View
TECHNICAL SPECS
Engine Information
• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 168.9cc
• Max HP: 11.1hp/8000rpm
• Max torque: 8.1 lb ft/6000rpm
• Bore x stroke: 2.4x2.28 inches
• Climbing ability: 12 degrees
• Ignition: C.D.I
• Starting system: Electric
• Battery: 12V 10Ah
• Carburetor brand: Deli (Vacuum film)
• Engine oil: SAE 15W-40
General Information
• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension F / R: Double A-arm / swing-arm
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires F / R: 20x7-8 / 21x10-10
• Wheel: Steel
• Fuel capacity: 2.25 gal
• Weight, G.W. / N.W.: 573 / 485 lbs
• Max load: 500 lbs
Dimension Information
• Wheelbase: 59 inches
• OA L x W x H: 85x53.1x57.5 inches
• Height to seat: 13.8 inches
• Min ground clearance: 6.7”
• Pedal to seat back distance: 41” to 46”
Key features
• Stylish design
• Five-point safety seatbelt
• Electric start with kill switch
• Fully automatic with reverse, high performance GY6 engine with internal reverse set up
• Adjustable steering wheel
• Large tires with 20X7-8 in the front and 21X10-10 in the back, steel wheel
• Individual sporting seats
• Polished stainless steel muffler
• High-low beam head light
• Bikini sunshade top
• Adjustable driver seat: pedal to seat back adjustable from 41” to 46”
• Adjustable heavy duty front and rear shock absorber
• Central rear view mirror
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• 4-point rear swing arm
• Parking brake
• 4-wheel stylish fenders
• Trailer hitch
• Large rear utility rack
• Large gas tank
| Youth/Adult size Kart | |||||||||||||||||||
| Model | Driver group* | Max. speed | Max. Load (Lb) | Engine | Tire and Wheel | MainFeatures | |||||||||||||
| Driver age* | Fit height | Power | EFI version available |
Front | Rear | Aluminum Rim |
seatbelt | Hydraulic brake (F/R) |
2/4 seats | Plastic Hood/ Fender |
Side Mirror |
Windshied | LED Light bar | Turn lights | Brake light | Rear Suspension |
|||
| 200 XRS | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 22x10-10 | 5pt | F/R | 2 | F | x | solid axle | ||||||
| 200 XRS EFI | 14 and up | 6'2'' | 40mph | 500 | 11HP | x | 20x7-8 | 22x10-10 | 5pt | F/R | 2 | F | x | solid axle | |||||
| 200 XRX | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | F | x | x | x | x | x | solid axle | |
| 200 XRX EFI | 14 and up | 6'2'' | 40mph | 500 | 11HP | x | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | F | x | x | x | x | x | solid axle |
| Blazer 200 | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 21x10-10 | 5pt | F/R | 2 | H/F | x | solid axle | ||||||
| Blazer 200X | 14 and up | 6'2'' | 40mph | 500 | 11HP | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | H/F | x | x | x | x | x | solid axle | |
| Blazer 200X EFI | 14 and up | 6'2'' | 40mph | 500 | 11HP | x | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | H/F | x | x | x | x | x | solid axle |
| Blazer4 200X | 14 and up | 6'2'' | 38mph | 800 | 11HP | 20x7-8 | 21x10-10 | 5pt | F/R | 4 | H/F | x | x | x | solid axle | ||||
| Blazer4 200X EFI | 14 and up | 6'2'' | 38mph | 800 | 11HP | x | 20x7-8 | 21x10-10 | 5pt | F/R | 4 | H/F | x | x | x | solid axle | |||
| Cheetah 8 | 14 and up | 5'8'' | 32mph | 500 | 7.5HP | 18x7-8 | 18x7-8 | 4pt | R | 2 | H/F | double ball joints | |||||||
| Cheetah 200 | 14 and up | 6' | 38mph | 500 | 11HP | 22x7-10 | 22x10-10 | 4pt | F/R | 2 | H/F | x | double ball joints | ||||||
| Cheetah 200 EFI | 14 and up | 6' | 38mph | 500 | 11HP | x | 22x7-10 | 22x10-10 | 4pt | F/R | 2 | H/F | x | double ball joints | |||||
| Cheetah 200X | 14 and up | 6' | 38mph | 500 | 11HP | 22x7-10 | 22x10-10 | x | 4pt | F/R | 2 | H/F | x | x | x | x | double ball joints | ||
| Cheetah 200X EFI | 14 and up | 6' | 38mph | 500 | 11HP | x | 22x7-10 | 22x10-10 | x | 4pt | F/R | 2 | H/F | x | x | x | x | double ball joints | |
| 300E XRS | 16 and up | 6'2'' | 50mph | 500 | 18HP | only EFI | 20x7-8 | 22x10-10 | 5pt | F/R | 2 | F | solid axle | ||||||
| 300E XRS4 | 16 and up | 6'2'' | 50mph | 800 | 18HP | only EFI | 20x7-8 | 21x10-10 | 5pt | F/R | 4 | F | solid axle | ||||||
| 300E XRX | 16 and up | 6'2'' | 50mph | 500 | 18HP | only EFI | 20x7-8 | 22x10-10 | x | 5pt | F/R | 2 | F | x | x | x | x | x | CV Joint shaft |
