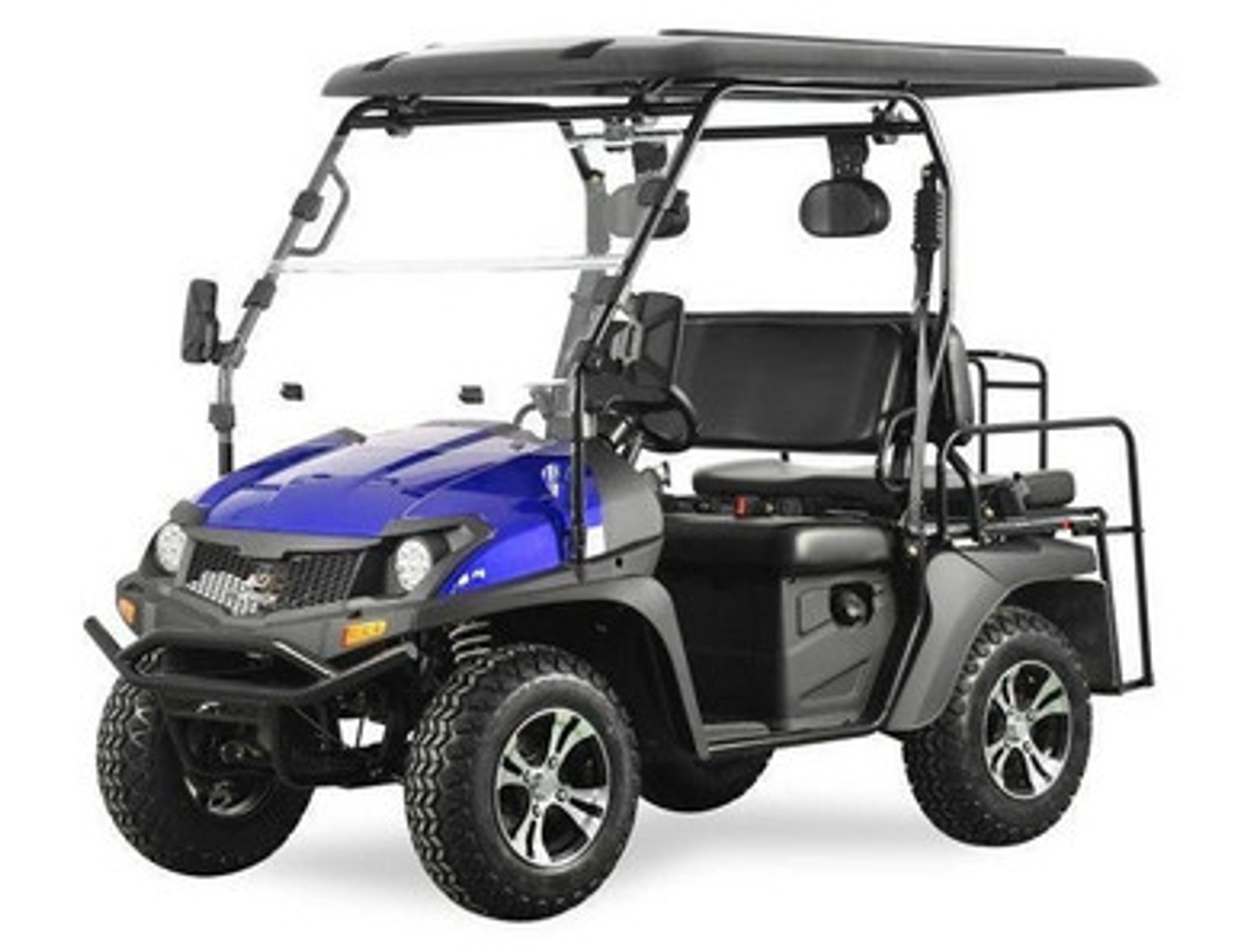

BLUE - Trailmaster Taurus 200GX UTV, 4-Stroke, Single Cylinder, Air and Oil Cooled - Available in Crate
The Taurus 200GX is an identical unit of the Taurus 200 MFV with the exception of the extended hard roof top in exchange of the dump bed on the MFV version, a popular request from many of our dealers.
The Taurus 200GX is equipped with a 9.5 HP air and oil cooled high performance 177cc GY6 engine with internal reverse set up. It comes standard with a H/L gear. The low gear mode has a 40% better climbing ability than the non H/L version and can climb up to 30 degree slopes with ease. The Taurus 200 has significantly greater torque than the non H/L gear version machines. It is also equipped with 4 wheel independent suspension for optimal driving experience.
Other notable features includes: aluminum wheels package, front and rear 24 x 8-12 / 24 x 8-12 turf tires, Hi/Lo LED headlights, turn signals, rearview side mirrors, digital dashboard, hard top, steel front bumper, retractable seatbelt, 12 volt outlet, cup holder.
PRODUCT FEATURE
- Equipped with rear flip seat with extended hard roof top. Can be used as a neighborhood golf cart to carry up to 4 persons.
• Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
• Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
• Four-wheel independent suspension for much better driving experience
• Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat
• Digital dashboard
• LED Hi/Lo head light
• Rear view side mirrors
• Sporting steering wheel
• Turn signals
• Safety harness seatbelt
• Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12
• Polished aluminum wheels
• Extended Hard top
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Large gas tank
• Horn
Options
• Optional folded windshield
• Optional 2000lbs-winch
• Optional LED light bar
TECHNICAL SPECS
Parts breakdown set up manuel
| TAURUS 200 UTV | Parts Breakdown |
Engine Information
• EPA Certificated
• Engine Type: 4-stroke, single cylinder, air and oil cooled
• Displacement: 177.3cc
• Compression Ratio: 8.8:1
• Max HP: 9.5HP
• Bore & Stroke: 62.5X57.8 mm
• Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)
• Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)
• Max Speed: 25mph
• Climbing Ability: 30 degrees
• Ignition: C.D.I
• Starting System: Electric
• Battery: 12V 9Ah
• Carburetor Brand: Deli
• Engine Oil: SAE 15W/40
General Information
• Transmission: Auto, L-H-N-R
• Drive Train: Shaft Drive; 2 WD:
• Drive Mode: Rear Shaft Drive, Rear differential
• Suspension, F/R: Front MacPherson, Rear Dual A-ARM
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires, F / R: 24 x 8-12 / 24 x 8-12
• Fuel Tank Capacity: 4.8 gallons
• Wheels: Aluminum
• Weight, G.W. / N.W.: 1136 lbs/ 880 lbs
• Max Load: 800 lbs
Dimension Information
• Wheelbase: 63”
• OA L x W x H: 108”x54”x74”
• Seat Height: 33”
• Min Ground Clearance: 11”
Product Dimensions
• L x W x H: 90x55x33 inches
• Weight : 1300
| Model | Driver age* | Fit height | Max. speed | Max. Load (Lb) | Power | EFI version available | Front | Rear | Aluminum Rim | seatbelt (F / R) | Hydraulic brake (F/R) | 2/4 seats | Side Mirror | Head lights Turn lights | Brake light | Rear seat | Dump Bed | Windshied | LED Light bar | Hard Roof | Winch | Snow Plow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Taurus 200G | 16 and up | 6'2'' | 25mph | 800 | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R | x | 4 | x | x | x | x | Optional | Optional | Optional | Optional | Optional | |
| Taurus 200G EFI | 16 and up | 6'2'' | 25mph | 800 | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R | x | 4 | x | x | x | x | Optional | Optional | Optional | Optional | Optional | |
| Taurus 200GX | 16 and up | 6'2'' | 25mph | 800 | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R | x | 4 | x | x | x | x | Optional | Optional | Optional Long Roof | Optional | Optional | |
| Taurus 200GX EFI | 16 and up | 6'2'' | 25mph | 800 | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R | x | 4 | x | x | x | x | Optional | Optional | Optional Long Roof | Optional | Optional | |
| Taurus 200MFV | 16 and up | 6'2'' | 25mph | 800 | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R (with seat) | x | 2 or 4 | x | x | x | x | x | Optional | Optional | Optional | Optional | Optional |
| Taurus 200MFV E | 16 and up | 6'2'' | 25mph | 800 | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R (with seat) | x | 2 or 4 | x | x | x | x | x | Optional | Optional | Optional | Optional | Optional |
| Taurus 200U EFI | 16 and up | 6'2'' | 25mph | 800 (inc. 220 in bed) | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable front only | x | 2 | x | x | x | x | Optional | Optional | Optional | Optional | Optional | |
| Taurus 200U | 16 and up | 6'2'' | 25mph | 800 (inc. 220 in bed) | 9.5HP | x | 24 x 8-12 | 24 x 8-12 | x | retractable front only | x | 2 | x | x | x | x | Optional | Optional | Optional | Optional | Optional | |
| Taurus 4-450 | 16 and up | 6'2'' | 35mph | 1000 (inc. 330 in bed) | 25.8HP | only EFI | 24 x 8-12 | 24 x 8-12 | x | retractable front only | x | 2 | x | x | x | x | Optional | Optional | Optional | Optional | Optional | |
| Taurus 450G | 16 and up | 6'2'' | 35mph | 1000 | 25.8HP | only EFI | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R | x | 4 | x | x | x | x | Optional | Optional | Optional | x | Optional | |
| Taurus 450U | 16 and up | 6'2'' | 35mph | 1000 | 25.8HP | only EFI | 24 x 8-12 | 24 x 8-12 | x | retractable F\ Lap belt R | x | 4 | x | x | x | x | Optional | Optional | Optional | x | Optional |
